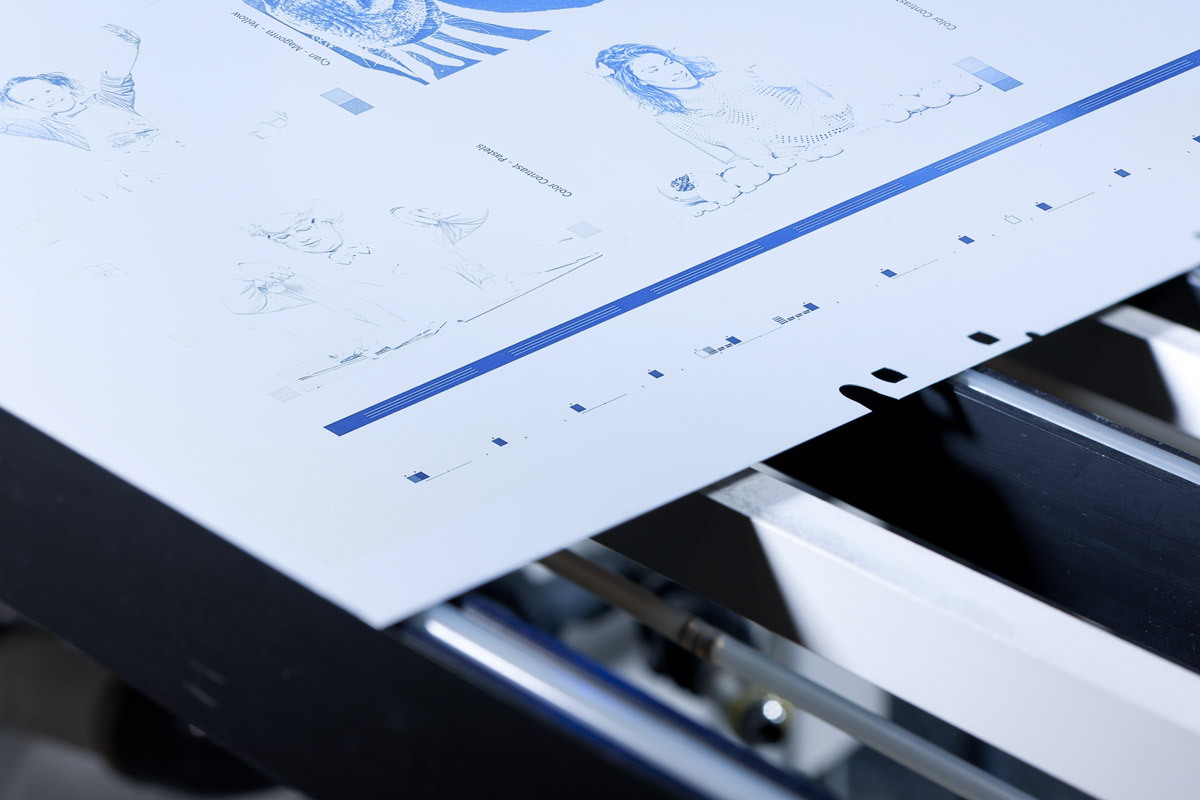

Energy Elite Eco is an advanced, highly robust no-bake thermal printing plate for commercial and packaging applications, including UV ink jobs. It delivers excellent imaging quality and supports 340 lpi Sublima screening and 20-micron FM screening, with stable 1–99% dot reproduction. Its efficient use of chemistry reduces consumption and maintenance, while delivering optimal ecological benefits when combined with the Arkana smart processor.
This future-proof plate is compliant with important ecolabels such as Blue Angel and Nordic Swan. In combination with the Arkana processor, NO rinse water is needed since Arkana's patented gum cascade system cleans and protects the plates in a single step.
Energy Elite Eco's dual-layer coating technology eliminates the need for any pre- or post-baking, saving space, time and money. When using a conventional processor, efficient chemistry use extends bath life to over 15,000 m². Reduced chemical replenishment rates lead to further cost and waste savings. To maximize savings, an Arkana smart processor is recommended.
Energy Elite Eco plates are suitable for a variety of different applications and press conditions, offering you flexibility and optimal performance. The plate supports a 1-99% dot resolution, without dot loss, using 340 lpi Sublima screening or 20 micron FM screening.
The robustness and scratch resistance of Energy Elite Eco plates enable us to print 260 to 300,000 copies with a single set of plates.
Sebastian Preissler, Operations Manager – PIEREG Druckcenter Berlin
The advanced Energy Elite Eco technology enables a wide press latitude in sheet-fed, heatset and UV packaging printing. Energy Elite Eco performs flawlessly in high-speed platesetters and is compatible with UV and metallic inks, even without baking.
As a thermal printing plate, Energy Elite Eco is daylight safe. The plate enables the creation of durable, photorealistic images with 340 lpi Sublima screening or 20 micron FM stochastic screening. Energy Elite Eco offers quality-consistent printing results at 1-99% dot resolution and without dot loss.
Energy Elite Eco perfectly fits into the ECO3 philosophy, designed with a dedication to ecology, economy, and extra convenience. Combined with standard processors, the printing plate affects a significant decrease in waste production and chemicals used. It also allows for a longer bath life and less frequent, easier processor maintenance. Processors can be cleaned using standard tap water.
Combine Energy Elite Eco with the Arkana smart plate processing technology to benefit optimally from the full range of its features:
Ink, water, fountain solution, washes… During the printing process, many products interact with your blanket, metal and plate coatings. ECO3 developed the ANTURA founts alongside the Energy Elite Eco plates to guarantee their optimal performance:
| Plate characteristics | |
|---|---|
| Plate Type | Positive-working, digital thermal offset plate |
| Substrate | High-quality grained and anodized aluminum |
| Spectral Sensitivity | 830 nm (thermal laser diode) |
| Practical Sensitivity [mJ/cm²] | 100 mJ/cm² |
| Image contrast | Excellent, can be measured with all available densitometers and plate readers |
| Plate sizes | - Length: 450 to 2080 mm - Width: 480-1590 mm |
| Gauges | 0.15, 0.20, 0.24, 0.30, 0.35 and 0.40 mm |
| Runlength | - Sheetfed: 300,000 - UV: 100,000 - LED-U: V50,000 |
| Screening | - ABS: 1-99% at 200 lpi at 2400 dpi - Sublima: 1-99% at 340 lpi at 2400 dpi - FM 20 µm |
| CtP and auto-loader compatibility | Compatible with all 830 nm platesetters |
| Image contrast | Excellent, can be measured with all available densitometers and plate readers |
| Room lighting | Daylight |
| Room conditions | 18-24 °C (64-75 °F), < 70% RH |
| Storage conditions | Below 32 °C (90 °F), <70% RH |
| Processing | Arkana smart processor | Conventional plate processor |
|---|---|---|
| Developer | - Arkana Pro Developer - Arkana Pro Replenisher | TBD |
| Replenishment rate | 10ml/ m² – 8ml/h | 50-70 ml/m² and 50-80 ml/h |
| Bath life | 15,000 m² | 15,000 m² |
| Rinse water | NO rinse water | Standard |
| Gum | Arkana Pro Gum | Unifin Plus |
| ECO3 optimized pressroom supplies | |
|---|---|
| Plate cleaner | ANTURA CtP Plate Cleaner |
| Washout gum | ANTURA CleanGum |
| Machine finisher | Unifin Plus, Arkana gum |
| Baking gum | ANTURA Baking Gum |
| Storage gum | ANTURA Storage Gum |
| Fountain solution | Energy Elite Eco is compatible with all ECO3 fountain solutions |
| IPA | ANTURA IPA 100 |
| Roller & blanket washes | Energy Elite Eco is compatible with all ECO3 roller & blanket washes |
