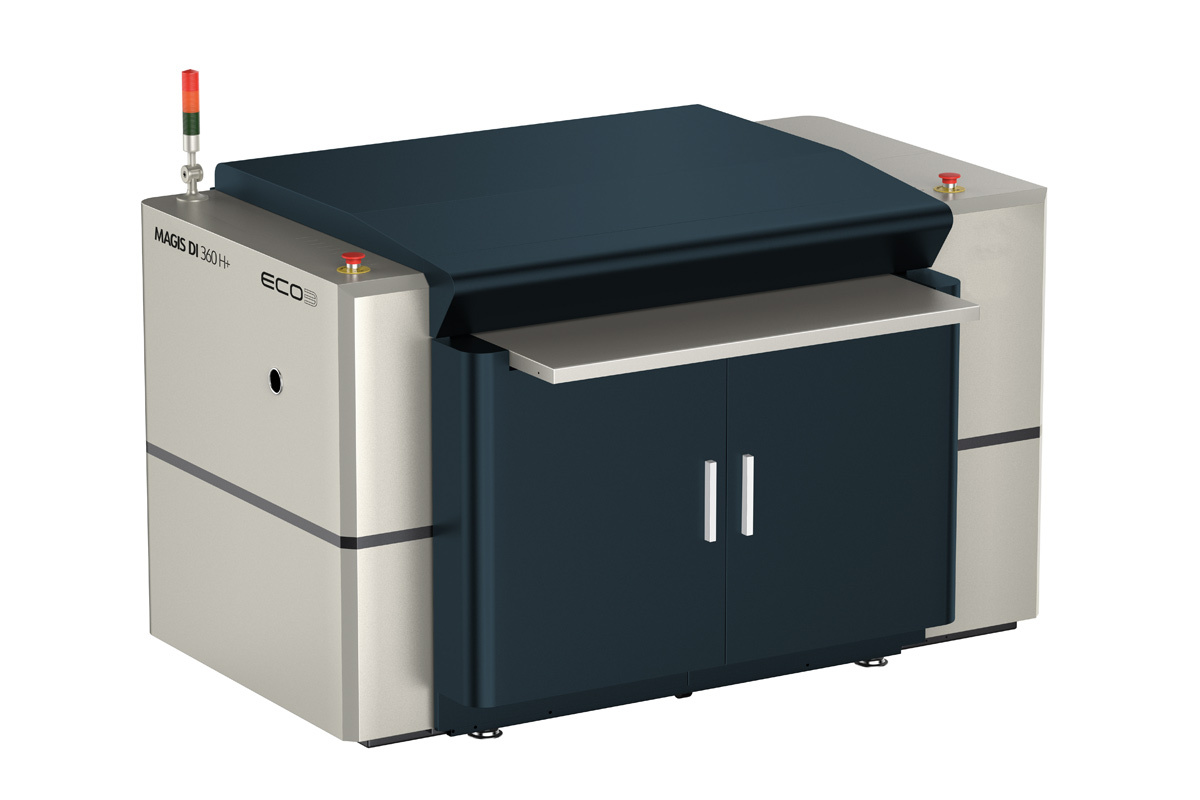

MAGIS DI is a high-resolution and high-speed imaging system used to image MAGIS F Dry Film. The low energy required for this imaging process extends the laser's lifespan and reduces maintenance and service costs. MAGIS DI is also a highly flexible HDI imaging system, developed for superior quality plate production. The MAGIS DI 360 H+ has a semi-automatic loading system, with a mobile tail clamp that allows imaging a wide range of materials, ensuring maximum productivity.
Multiple media options
MAGIS DI 360 H+ meets your plate-making requirements for a wide range of presses. It supports MAGIS F 830 dry film as well as flexo or letterpress plates.
High resolution support
This imager is designed for high-resolution label printing. It can optionally support resolutions up to 9600 dpi.
Easy mounting
There is no need to use tape to secure plates to the imaging drum.
Flexible connectivity
The MAGIS DI 360 H includes a front-end to import 1-bit TIFF data, which all the major workflow systems on the market can generate.
Optimized for MAGIS F
The lower energy requirement of MAGIS F 830 dry film helps increase imaging speed and extends the lifetime of the laser.
Supports Amfortis PlateAssembler
Amfortis PlateAssembler can combine multiple labels for output on a single film or plate.
| MAGIS DI 360 H+ | |
|---|---|
| Min. media size | 100 x 130 mm (3.9 x 5.1") |
| Max. media size | 675 x 920 mm (26.5 x 36.2") |
| Max. MAGIS film size | 640 x 838 mm (25.2 x 33") |
| Supported materials | - Thermal dry film - Ablative film - Digital flexo plates - Polyester letterpress plates |
| Supported media thicknesses | 0.11 to 3.94 mm |
| Imaging resolutions | 2,400 & 4,800 dpi (9,600 dpi optional) Alternative 2,000 & 4,000 dpi (8,000 dpi optional) or 2,540 & 5,080 dpi |
| Estimated max. productivity* | - Dry film: 9.2 m²/hour at 2,400 dpi; 6.9 m²/hour at 4,800 dpi (1,000mJ) - LAMS: 2.4 m²/hour at 4,800 dpi (4,000mJ) |
| Loading system | Semi-automatic (automatic movable tail clamping) |
| Net weight | 880 kg |
| Dimensions imager | - Length: 1,650 mm (65”) - Width: 1,300 mm (51.2”) - Height: 1,100 mm (43.3”) |
| Dimensions dust remover | - Length: 485 mm (19.1”) - Width: 485 mm (19.1”) - Height: 850 mm (33.5”) |
| Power supply | 220V ± 5% 50/60Hz |
| Rated power | 5.6 kW |
| Environment | - Temperature: 18-28° C - Relative humidity: 40%-60% |
| Software | Laboo software included; PC platform required |
| Clamp area | 7 mm head clamp, 8 mm tail clamp, movable tail clamp |
Productivity may vary according to exposure, resolution, size and plate thickness.
